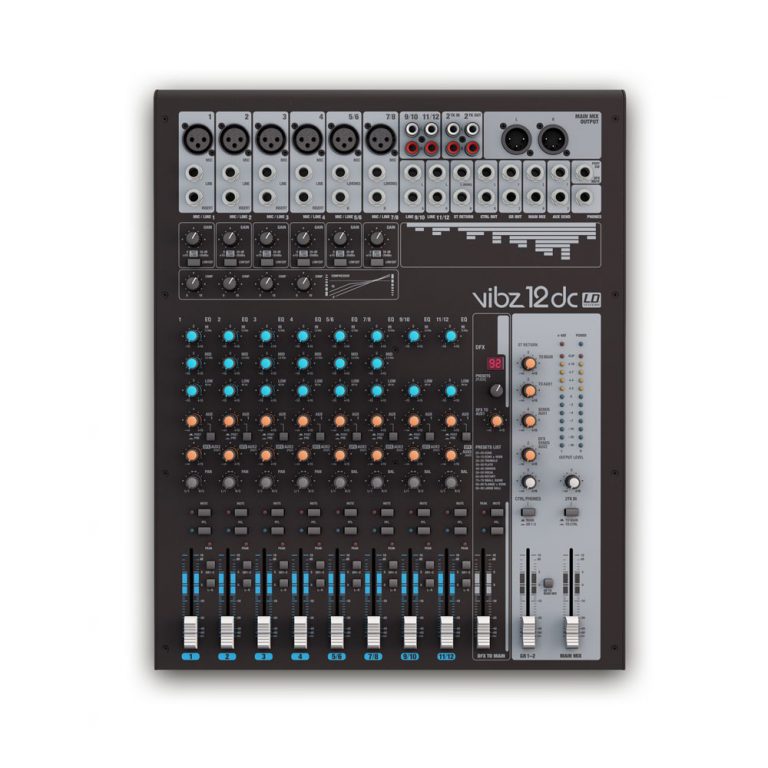

מיקסר הגברה איכותי במיוחד מבית LD Systems.
בעל 12 ערוצי מיקסר עם 6 ערוצי מיקרופון, 4 כניסות סטריאו, איקיו של 3Band ו-2 ערוצי סטריאו עם 2Band EQ.
טווח תדרים של 10 עד 45,000 הרץ.

מפרט טכני:

Product type Mixers
Type Live
Channels 12
Mono Channels:
Mono Mic and Line Input Channels 4
Mono Mic input connectors 6.3 mm TRS, XLR
Mono Mic Input Type Electronically balanced
Mono Mic Input Frequency Range 10 – 45000 Hz
Amplification Range mono Mic Input 0 – 50 dB
Mono Mic Input Input THD-N 0.0058%
Mono Mic Input Impedance 4k Ohm(s)
Mono Mic Input S/N Ratio 113 dB
Mono Line Input Type Electronically balanced
Mono Line Input Frequency Range 10 – 45000 Hz
Amplification Range mono Line Input 0 – 50 dB
Mono Line Input Input THD-N 0.0045 %
Mono Line Input Impedance 21k Ohm(s)
Mono Line Input S/N Ratio 116 dB
Mono Channel Equalizer High +/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid +/- 15 dB @ 2,500 Hz
Mono Channel Equalizer Low +/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels 3-band EQ (High, Mid, Low), AUX 1 umschaltbar Pre/Post, AUX 2 (DFX) Post, Compressor, DFX/AUX 1, Gain, Low Cut (75 Hz), PFL
Phantom power 48 V DC switchable
Stereo Channels:
Stereo Line Input Channels 4
Stereo Line Input Connectors 6.3 mm TRS, RCA
Stereo Line Input Type Electronically balanced, Unbalanced
Stereo Line Input Frequency Range 10 – 45000 Hz
Amplification Range stereo Line Input 0 – 50 dB
Stereo Line Input Input THD-N 0.0045 %
Stereo Line Input Impedance 3,7k Ohm(s)
Stereo Line Input S/N Ratio 116 dB
Stereo channel equalizer treble +/- 15 dB @ 12000 Hz
Stereo channel equalizer mids +/- 15 dB @ 2500 Hz
Stereo channel equalizer bass +/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels 2-band EQ (High,Low), 3-band EQ (High, Mid, Low), AUX 1 umschaltbar Pre/Post, AUX 2 (DFX) Post, Balance, Channel Volume, DFX/AUX 1, Gain, Low Cut
Main Section:
AUX / Effects Send Channels 2
AUX / Effects Send Connectors 6.3 mm TRS
Stereo AUX Return Channels 1 x stereo
Stereo AUX Return Connectors 6.3 mm TRS
Stereo Tape Out Channel 1 x stereo
Stereo Tape Out Connectors 2 x RCA (Cinch)
Stereo Tape In Channel 1 x stereo
Stereo Tape In Connenctors 2 x RCA (Cinch)
Balanced Stereo Main Out 1
Balanced Stereo Main Out Connectors XLR
Balanced Stereo Main Out Impedance 120 Ohm(s)
Max. Balanced Stereo Main Out Level 23 dBu
Stereo Control Room Out 1
Stereo Control Room Out Connectors 6.3 mm TRS
Headphones ouput 1
Headphones outputs 6.3 mm TRS
Digital Effects Processor Yes, 24-bit AD/DA Resolution
Number of Presets 100
Footswitch Connector DFX Mute 6.3 mm TRS
Main section controls 2-track Assignment (Main, Contr. Room), 2-track In Volume, AUX 2 Send Volume, CTRL / Phones assignment (Main/Group 1-2), DFX Mute Schalter, DFX TO AUX Volume, DFX To Main Volume, Group 1-2 assignment to Main MIX, Group 1-2 Volume, Master Volume, PFL, Phantom Power, Power, presets, Stereo Return to AUX Volume, Stereo Return to MAIN Volume, Volume Control CTRL / Phones
Indicators DFX Peak, DFX TO MAIN, PFL, Phantom Power, Power
Operating voltage 100 V AC – 240 V AC, 50 – 60 Hz
Width 350 mm
Height 98 mm
Depth 440 mm
Weight 4,3 kg
