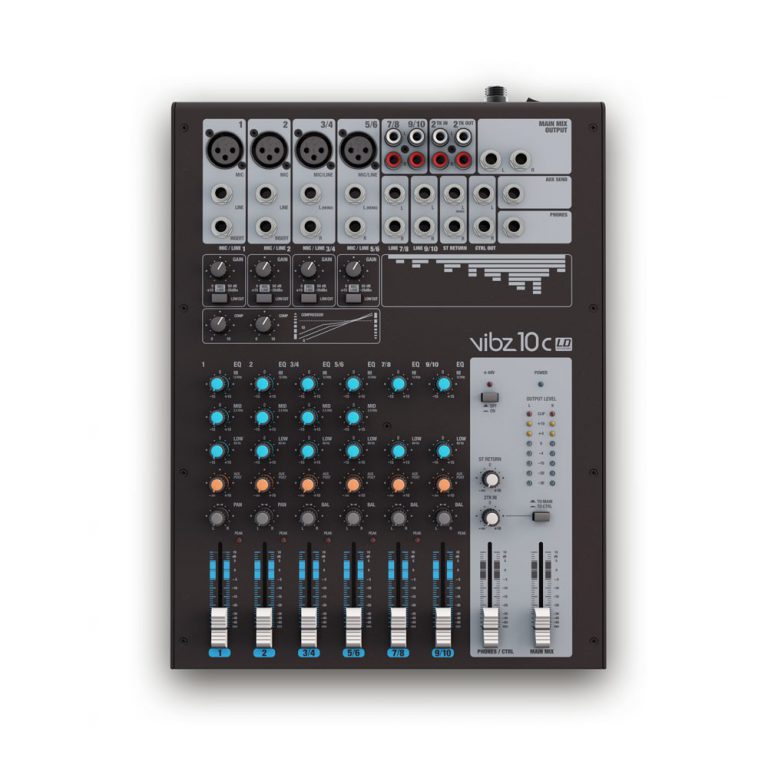

מיקסר הגברה איכותי במיוחד מבית LD Systems.
בעל 10 ערוצי מיקסר עם 4 ערוצי מיקרופון, 4 כניסות סטריאו, איקיו של 3Band ו-2 ערוצי סטריאו עם 2Band EQ.
טווח תדרים של 10 עד 45,000 הרץ.

10-channel mixer with 4 microphone channels
4 stereo line inputs
Effective 3-band EQ
2 stereo channels with 2-band EQ
Sliding adjustable compressor
Master, Monitor and headphone outputs
Securely fastening external power supply

מפרט טכני:

Product type Mixers
Type Live
Channels 10
Mono Channels:
Mono Mic and Line Input Channels 4
Mono Mic input connectors 6.3 mm TRS, XLR
Channel Inserts 2
Channel Insert Connectors 6.3 mm TRS
Mono Mic Input Type Electronically balanced
Mono Mic Input Frequency Range 10 – 45000 Hz
Amplification Range mono Mic Input 0 – 50 dB
Mono Mic Input Input THD-N 0.0058%
Mono Mic Input Impedance 4k Ohm(s)
Mono Mic Input S/N Ratio 113 dB
Mono Line Input Type Electronically balanced
Mono Line Input Frequency Range 10 – 45000 Hz
Amplification Range mono Line Input 0 – 50 dB
Mono Line Input Input THD-N 0.0045 %
Mono Line Input Impedance 21k Ohm(s)
Mono Line Input S/N Ratio 116 dB
Mono Channel Equalizer High +/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid +/- 15 dB @ 2500 Hz
Mono Channel Equalizer Low +/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels 3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Compressor, Gain, Low Cut (75 Hz), pan
Phantom power 48 V DC switchable
Stereo Channels:
Stereo Line Input Channels 4
Stereo Line Input Connectors 6.3 mm TRS
Stereo Line Input Type Electronically balanced, Unbalanced
Stereo Line Input Frequency Range 10 – 45000 Hz
Amplification Range stereo Line Input 0 – 50 dB
Stereo Line Input Input THD-N 0.0045 %
Stereo Line Input Impedance 3,7k Ohm(s)
Stereo Line Input S/N Ratio 116 dB
Stereo channel equalizer treble +/- 15 dB @ 12000 Hz
Stereo channel equalizer mids +/- 15 dB @ 2500 Hz
Stereo channel equalizer bass +/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels 2-band EQ (High,Low), 3-band EQ (High, Mid, Low), AUX Post, Balance, Channel Volume, Gain, Low Cut
Main Section:
AUX / Effects Send Channels 1
AUX / Effects Send Connectors 6.3 mm stereo jack unbalanced
Stereo AUX Return Channels 1 x stereo
Stereo AUX Return Connectors 6.3 mm TRS
Stereo Tape Out Channel 1 x stereo
Stereo Tape Out Connectors 2 x RCA (Cinch)
Stereo Tape In Channel 1 x stereo
Stereo Tape In Connenctors 2 x RCA (Cinch)
Unbalanced stereo Main Outputs 1
Unbalanced stereo Main Output Connections 6.3 mm TRS
Unbalanced Stereo Main Out Impedance 120 Ohm(s)
Max. Unbalanced Stereo Main Out Level 20 dBu
Stereo Control Room Out 1
Stereo Control Room Out Connectors 6.3 mm TRS
Headphones ouput 1
Headphones outputs 6.3 mm TRS
Digital Effects Processor no
Main section controls 2-track Assignment (Main, Contr. Room), 2-track In Volume, Master Volume, Phantom Power, Phones / Control Room Volume, Stereo Return Volume
Indicators Phantom Power, Power
Operating voltage 18V DC – 1 A, External PSU, 230 V
Width 265 mm
Height 78 mm
Depth 352 mm
Weight 2,3 kg
